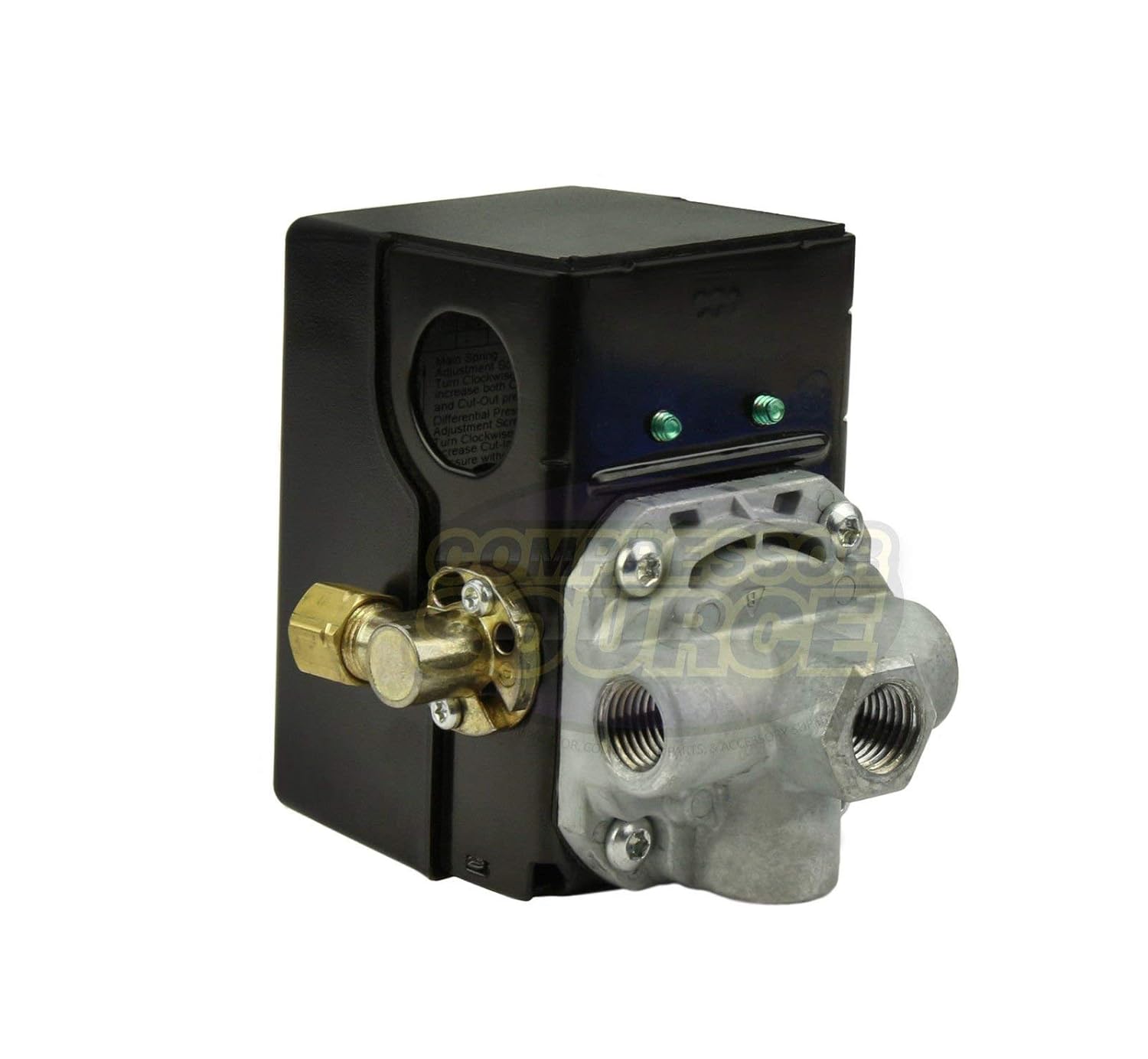

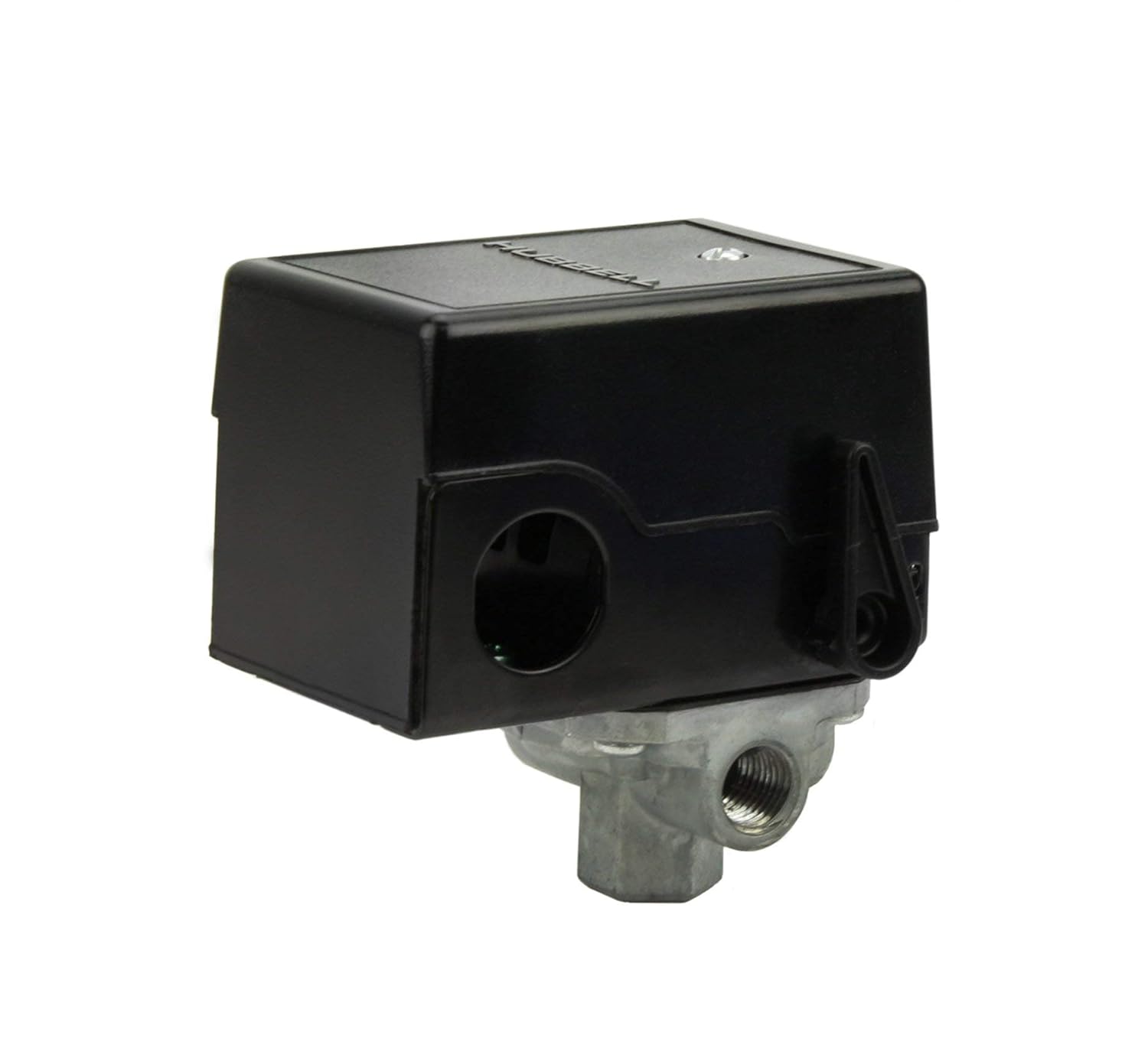

Pressure switch for air compressor made by Furnas / Hubbell 69JF7LY2C 95-125 Four port w/ unloader & on/off lever
Product details
| Management number | 224258962 | Release Date | 2026/05/09 | List Price | US$25.98 | Model Number | 224258962 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
4-port Hubbell / Furnas 95-125 PSI air compressor pressure switch control valve with four 1/4” female NPT air inlet connection ports. The switch listed is a universal replacement pressure switch that replaces brands such as Furnas , Square-D and more. This switch is equipped with an unloader valve, on / off lever, and a manifold with four 1/4” female NPT air inlet ports. ( Note: 1/4” NPT measures about 1/2” in diameter.) The unloader equipped on this switch is used to unload the air pressure off the head of the compressor when the compressor shuts off, this way when it starts there is no pressure on the piston and the compressor can start load free. This valve usually has a 1/4" plastic or copper line that runs to the check valve or the head of the compressor. If your compressor does not have an unloader line then this valve can be left not hooked up and the pressure switch will still function properly. Specifications: Brand: Hubbell (formerly Furnas) Part Number: 69JF7LY2C Preset: 95-125 PSI Equipped with Manual On/Off Lever on the Switch Pressure Differential: 30-40 PSI 1/4" Compression Unloader Valve Connection Four Port 1/4" Female NP Tank Connections
- Preset: 95-125 PSI
- Equipped with Manual On/Off Lever on the Switch
- Pressure Differential: 30-40 PSI
- 1/4" Compression Unloader Valve Connection
- Four Port 1/4" Female NP Tank Connections
| ASIN | B00273SR58 |
|---|---|
| Color | Black |
| Model | 69JF7LY2C |
| Terminal | Screw |
| Brand Name | Hubbell |
| Unit Count | 1.0 Count |
| Item Weight | 1 Pounds |
| Part Number | 69JF7LY2C |
| Switch Type | Pressure Switch |
| Circuit Type | 4-way |
| Contact Type | Normally Open |
| Control Type | ON-OFF |
| Manufacturer | Hubbell |
| Actuator Type | Lever |
| Material Type | Brass |
| Mounting Type | Wall Mount |
| Connector Type | Npt |
| Control Method | Touch |
| Current Rating | 10 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 4.25 x 4 x 3.5 inches |
| Number of Items | 1 |
| Contact Material | Brass |
| Operating Voltage | 230 Volts |
| Specification Met | ETL |
| Compatible Devices | Air Compressors |
| Included Components | 1 Pressure Switch |
| Number of Positions | 4 |
| Connectivity Protocol | X-10 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Compatible with Vehicle Type | Various Vehicles and Machinery |
| International Protection Rating | IP00 |
