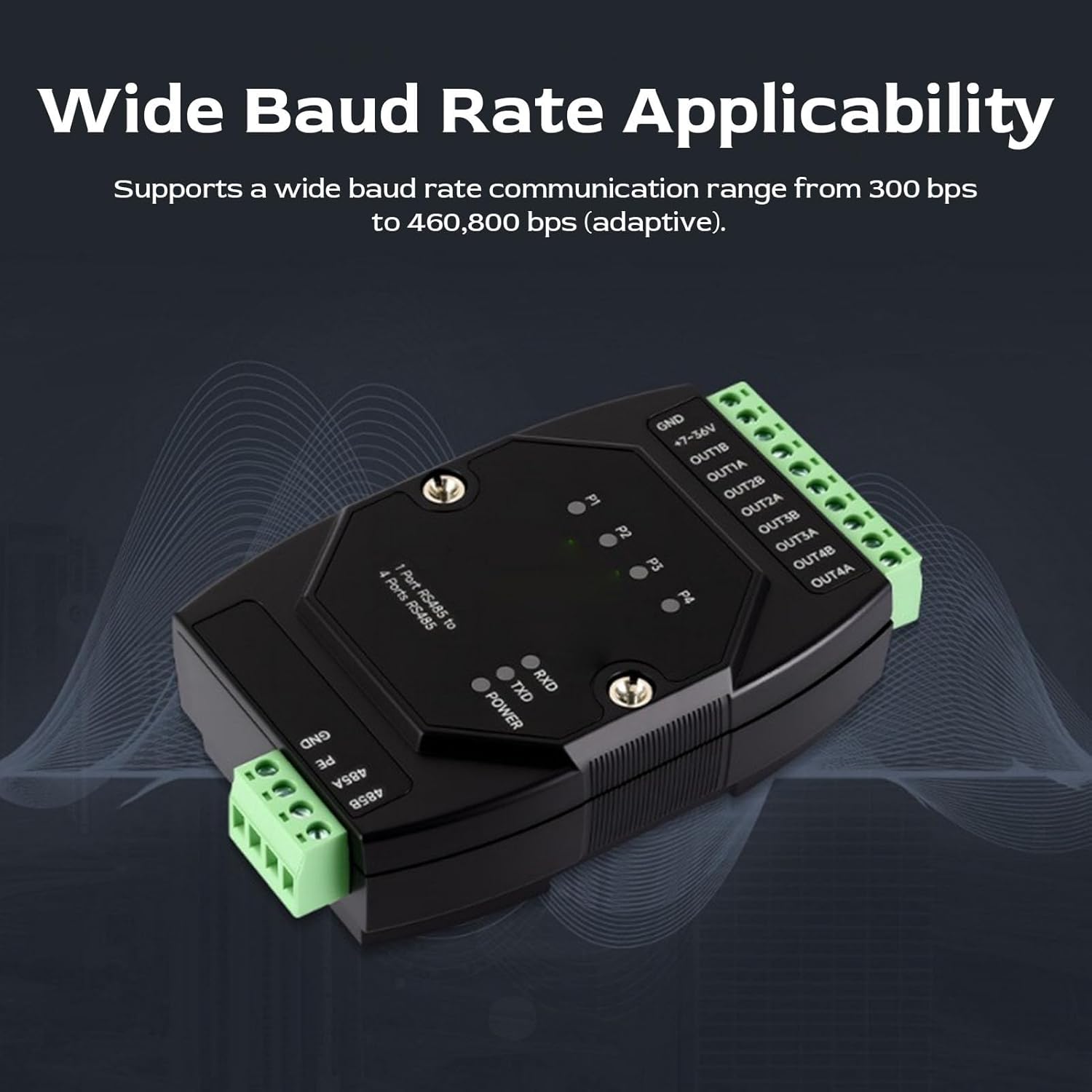

ciciglow Industrial Grade Isolated RS485 Hub, Expands 4 Channel RS485 Sub Ports Via 1 Channel Main Port, 300 to 460800bps Wide Baud Rate, Rail Mount Support

Specification: Item Type: Isolated 485 Hub Material: ABS Interface Standard: Complies with 485 Standard Physical Interface: 485 Terminal Communication Rate: 300-460800bps (Auto adaptive) Node Support: Up to 32 nodes per 485 port Communication Distance: 1200m (9600bps); the higher the communication speed, the shorter the distance. Operating Mode: 485 two wire (A, B), half duplex transparent transmission. Operating Temperature: -45 ~ +85℃ Environmental Humidity: Transmission Medium: Standard parallel wire/twisted pair cable packing list: 1 x Hub 1 x Terminal 1 x Screwdriver​

• 4 TO 1 EXPANSION CAPABILITY: This hub allows users to expand a single 485 master connection into 4 isolated 485 slave connections, enhancing the flexibility of 485 networks
• INDUSTRIAL GRADE ISOLATION: Isolated 4 channel 485 hub features a robust design, offering isolation for stable performance in demanding industrial environments, protecting against static and surges
• EASY INSTALLATION DESIGN: Featuring a rail mountable enclosure and terminal block power input, the hub ensures straightforward installation and high effectiveness for various applications
• VERSATILE APPLICATIONS: Ideal for data acquisition, gateways, smart instrument monitoring, and security systems, this hub meets diverse connectivity needs across different industries

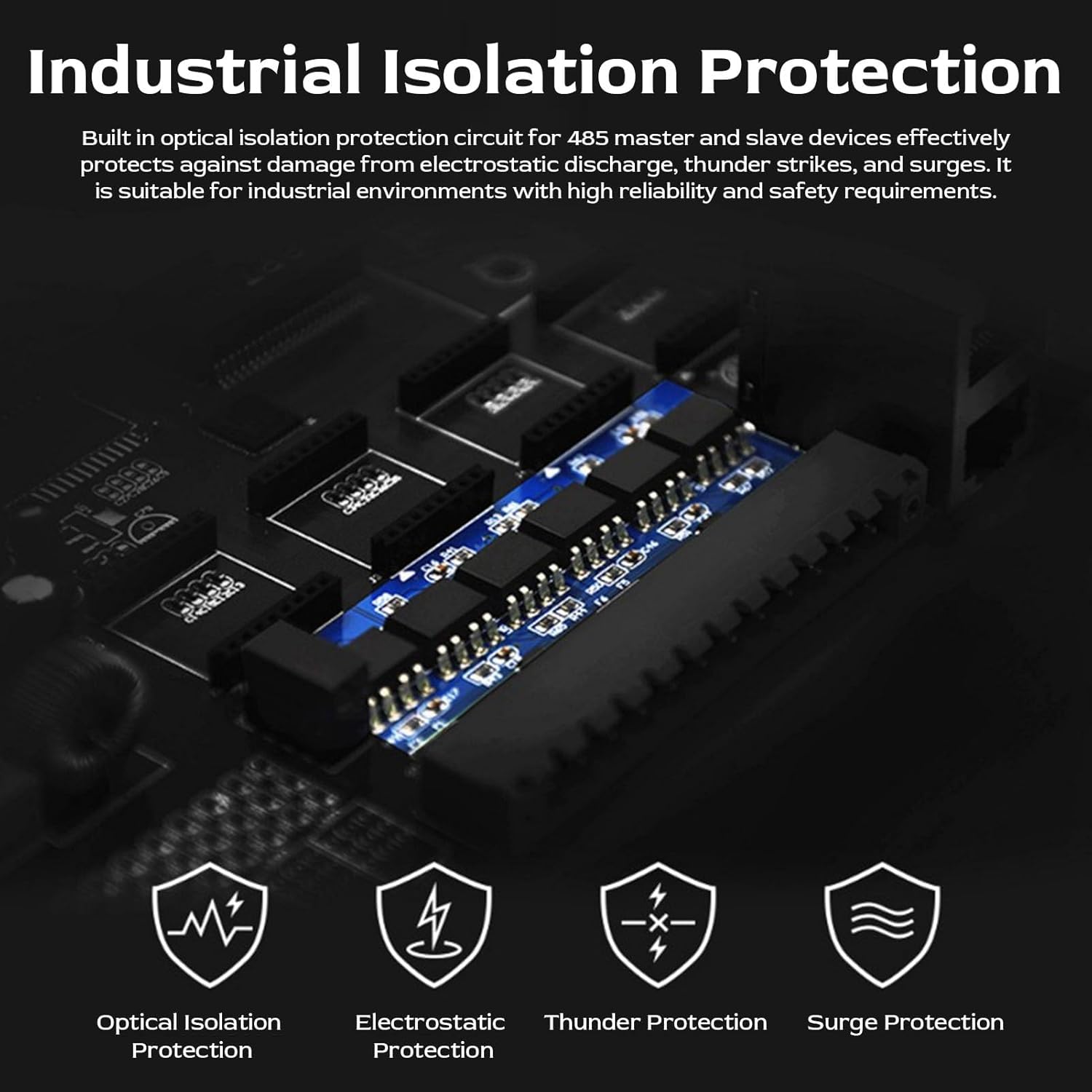

• OPTICAL ISOLATION PROTECTION: With built in optical isolation circuitry, the hub effectively protects connected master and slave devices from damage, ensuring safety and reliability in operations
